Secure your groundwater data with professional locking plugs, vapor extraction caps, and PFAS-free bailers. Ensure EPA compliance and prevent contamination.
18
Feb
In the field of environmental science and municipal management, the data collected from a monitoring well is only as reliable as the hardware protecting it. A monitoring well is a precision instrument designed to provide a window into the health of our groundwater. However, without the proper sealing and locking mechanisms, these windows can easily become points of contamination or targets for tampering. For environmental consultants and municipal engineers, maintaining "well integrity" is not just a best practice; it is a legal and safety requirement mandated by the Environmental Protection Agency (EPA) and various state health departments.
Ensuring a well remains a closed system requires a multi-layered approach to security. This begins with the internal locking plug and extends to specialized vapor extraction hardware and high-purity sampling equipment. By selecting professional-grade components that exceed standard plumbing fixes, project managers can ensure long-term data repeatability and protect the community’s most vital resource: its water.
The First Line of Defense: Advanced Locking Plugs
The most critical component within any monitoring well casing is the expansion plug. Unlike standard pipe caps that simply sit on top of a casing, a professional expansion plug like the Torquer® lines from Koby Environmental creates a mechanical, airtight, and watertight seal
inside the pipe. These plugs are designed specifically to meet or exceed the requirements for ultra-trace water sampling, ensuring that no surface runoff or airborne contaminants reach the groundwater.
For high-stakes environmental site assessments (ESA), materials matter immensely. The Torquer® Locking Well Plug, for example, is manufactured from an engineering-grade polymer blend that is resistant to the corrosive chemical environments often found at industrial cleanup sites. Because these plugs contain no metal parts, they are naturally resistant to corrosion and will not seize over time—a common point of failure for cheaper, makeshift hardware. This "no-fuss" reliability is essential for field technicians who must access wells in freezing temperatures or high-humidity environments.
Vapor Intrusion and Extraction: Specialized Sampling Solutions

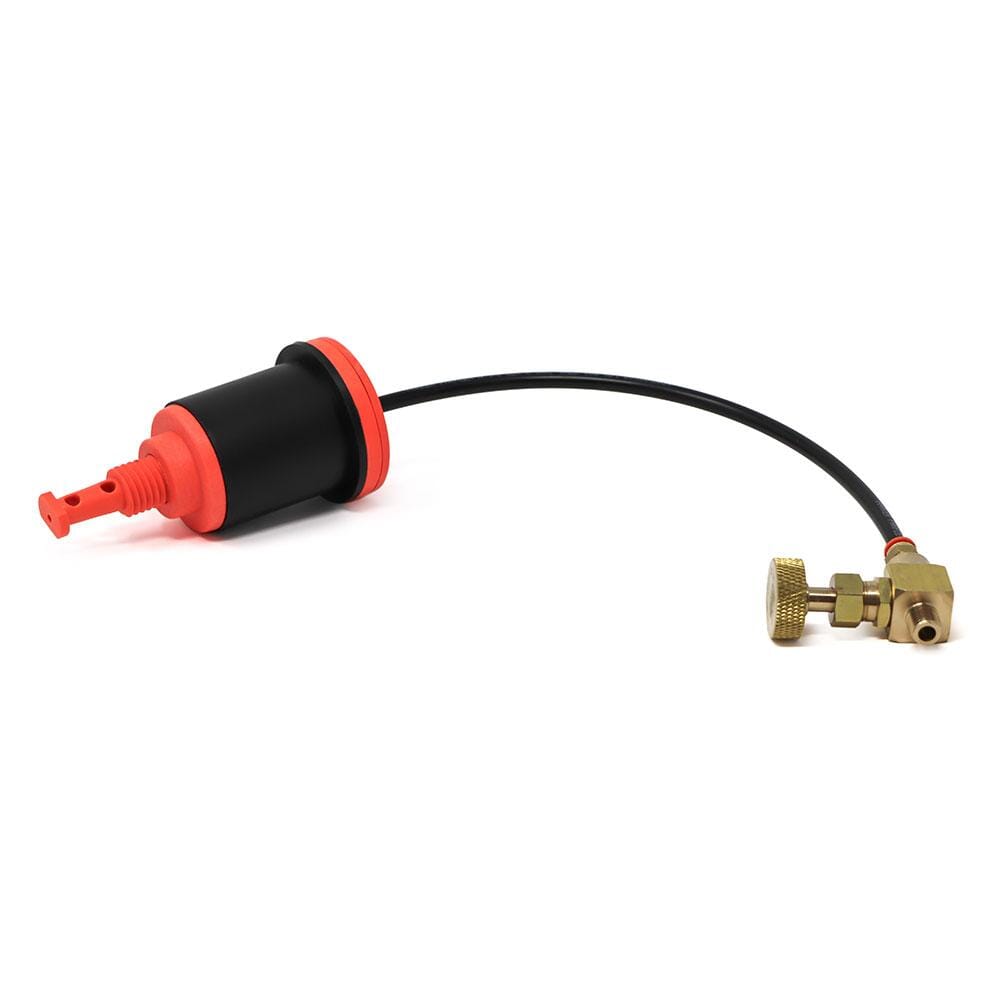

In many monitoring programs, particularly those involving underground storage tanks (UST) or landfill gas, the goal is not just to sample water, but to monitor the air space within the well for hazardous vapors. Standard plugs must be removed to take these samples, which immediately introduces atmospheric air into the well and compromises the "equilibrium" of the sample. To solve this, specialized hardware such as the FlushLock Locking Well Vapor Extraction Plug allows technicians to extract samples without ever removing the cap. *FlushLock Key sold separately
These vapor extraction systems utilize an airtight brass valve and flexible nylon tubing that stays permanently in place. This setup allows for the attachment of a Quick Connect Extraction Connector, facilitating immediate sampling with zero exposure for personnel. By maintaining a sealed environment, environmental consulting firms can guarantee higher data integrity, as the samples reflect the true ambient conditions of the well rather than a mixture of well gas and surface air.
Comparison of Primary Internal Well Hardware
Selecting the right hardware depends on the specific goals of the monitoring program. The following table summarizes the performance characteristics of our primary internal security solutions:
| Component Type | Primary Material | Key Feature | Regulatory Outcome |
| Locking Expansion Plug | Glass-Filled Nylon |
Watertight compression seal
|
Prevents cross-contamination
|
| Vapor Extraction Plug | Reinforced Nylon / Brass |
Vented port with needle valve
|
Maintains sample equilibrium
|
| FlushLock Well Plug | Prime Orange Nylon |
Flush-mounted, no-tool locking
|
Maximizes space in manholes
|
| Protector de pozos | 14-Gauge Steel |
Heavy-duty impact resistance
|
Prevents physical tampering/damage
|
The Critical Role of Groundwater Bailers in Data Integrity
Once a well is secured, the method of retrieving the sample becomes the next focus of compliance. Groundwater bailers must be selected based on the specific analytes being tested. For instance, when sampling for PFAS (Per- and Polyfluoroalkyl Substances), the equipment must be manufactured in a PFAS-free facility to avoid "false positive" results that can cost municipalities millions in unnecessary cleanup costs.
We offer both permanent and disposable options to fit different program budgets and decontamination protocols. Our SinkFast® disposable bailers are weighted to facilitate a 30% faster descent into the well, allowing field crews to move through a site more efficiently. For long-term monitoring at dedicated sites, the Permanent PVC Groundwater Bailer features a removable bottom check valve, allowing the unit to be fully disassembled and decontaminated between pulls, ensuring a lifetime of repeatable sampling.
Best for: Municipal and Industrial Site Management
For municipal water departments and military bases, the priority is often standardization and longevity. High-visibility hardware, such as the bright yellow EasyLock® or Grip-N-Lock caps, makes it easy for crews to identify wellheads in tall grass or crowded utility corridors. Furthermore, using a standardized locking scheme—such as plugs that accept #1 or #3 type padlocks—ensures that authorized personnel can always access the site while deterring vandalism and scrap metal theft.
Considerations: Matching Pipe Schedule to Hardware
A common challenge for DIY buyers and junior field technicians is ensuring the hardware matches the physical dimensions of the well casing. Monitoring wells are typically constructed from either Schedule 40 (SCH 40) or Schedule 80 (SCH 80) PVC. Because SCH 80 has a thicker wall, its internal diameter is smaller than that of SCH 40. It is vital to specify the pipe schedule when ordering locking plugs or vapor extraction caps to ensure a truly watertight seal. Using a SCH 40 plug in a SCH 80 pipe will result in an improper fit that fails to meet OSHA or EPA safety standards.
We take immense pride in our American-made craftsmanship and our ability to provide technical guidance that goes the extra mile. Every FootLoose RV cap, Grip-N-Lock well cap, and Koby extraction plug in our catalog is chosen because it works correctly the first time, every time. Integrity is at the heart of our business, and we are committed to helping you pick the exact part you need to stay compliant and secure.
Jeyree Reed
